Ground Penetrating Radar Survey, Zimbabwe

Objective

Determining the thickness of the gravel bars and footwall topography in a pre-selected, well-formed fluvial trap-site reach.

The initial survey took 3 days and the follow up survey 1 day.

Survey Details

Line spacing was set to 100m with continuous reading along the lines. The first pass had too deep a penetration rate and resolution was lost in the thin sediments. Initially 6 targets were surveyed focused on major gravel bars and one terrace under an irrigated field.

In order to improve resolution the antenna was changed to one for shallow penetration. This was then used for the two major  terraces.

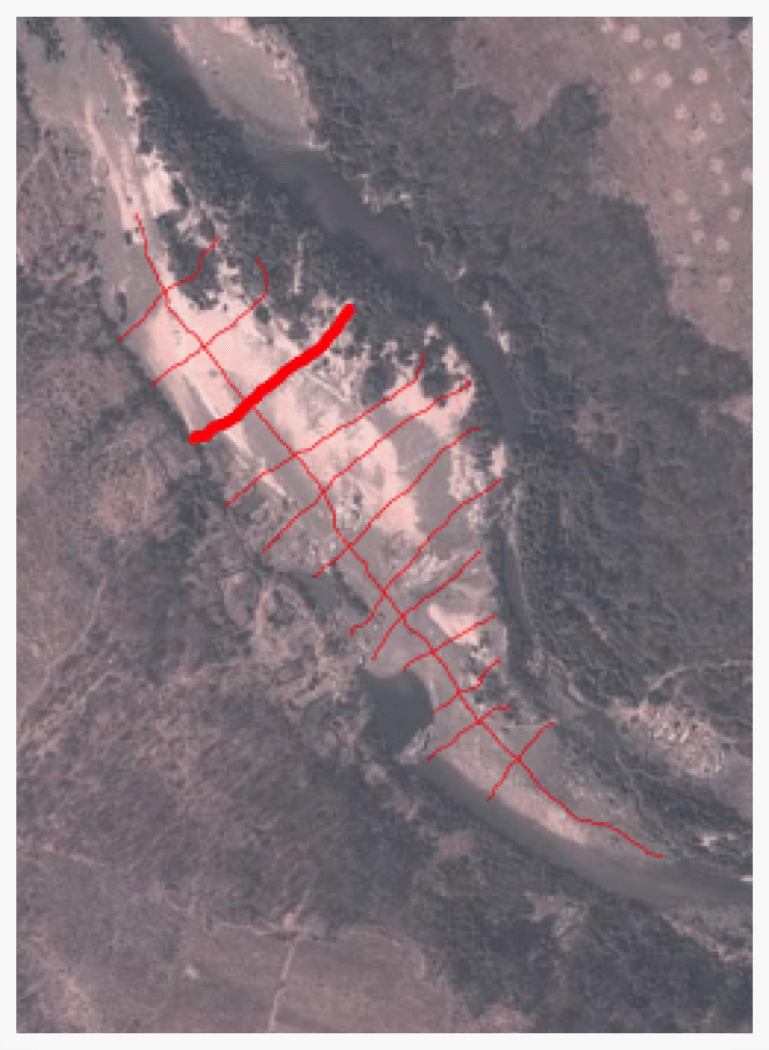

 GPR results overlaid on a satellite image. This gives an indication of the depth profile of the channel in context with the surroundings.

GPR results overlaid on a satellite image. This gives an indication of the depth profile of the channel in context with the surroundings.



 0
 0
 1
 18
 107
 indie
 1
 1
 124
 14.0






 Normal
 0




 false
 false
 false

 EN-US
 JA
 X-NONE
